ODIN Configurations

The pictures below show some typical ODIN Security Log Server setups depending on the specific needs for the customer and system it is integrated into. Note that these are just examples, ODIN can be deployed in several other ways also

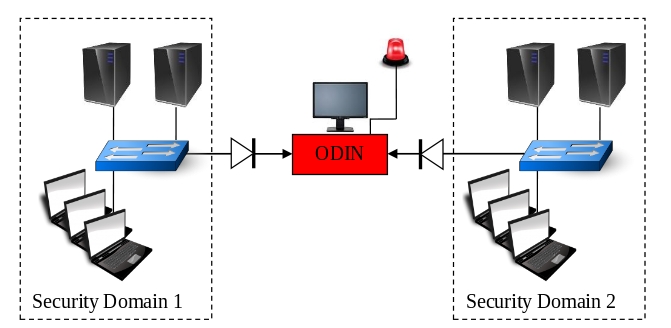

High assurance ODIN connection from two different security domains

The connection example above uses network diodes to enforce unidirectional connections to avoid data leakage between the two security domains. Typically used in multi-level security military systems

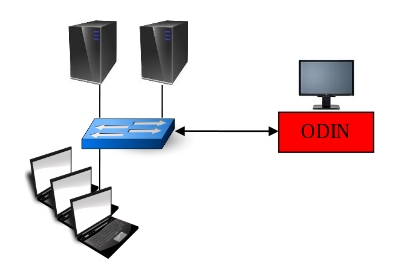

ODIN in one security domain, alert via email or SNMP

The connection example above shows typical use in an office environment or an autonomous high assurance system (not connected to any insecure network)
